| Herkunftsort: | Guangdong, China |
|---|---|
| Zertifizierung: | ROHS,SGS |
| Modellnummer: | MG-GT |
| Min Bestellmenge: | Verhandlung |
| Preis: | negotiable |
| Verpackung Informationen: | Verpackt im Karton |
| Lieferzeit: | 3~8 Tage |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | 100000pcs/day |
| Grad: | Industrieller Grad | Art: | Verbundblatt |
|---|---|---|---|
| Probe: | Mitgeliefertes Muster | Form: | Form angepasst |
| Härte: | 80 Ufer A | Größe: | Kann besonders angefertigt werden |
| C-Inhalt (%): | 99% | Verwendung: | LED-Beleuchtung / Kühlkörper / LCD-TV / DVD / PC / Handys |
| Hervorheben: | 0.1mm thickness thermal graphite film,13 W/m·K thermal conductive pad,0.1mm thickness reinforced graphite sheet |
||
Thickness 0.1mm Natural Graphite Sheet Use In IC CPU MOS LED Thermal Pad Graphene
Features & Benefits
l Ultra-high thermal conductivity, easy to operate;
l Low thermal resistance
l Light weight
Typical Applications:
IC ; CPU; MOS; LED; Heat sink; LCD-TV; Laptop; Communication equipment; Wireless switch; DVD; Hand-held device; Camera/digital camera; Mobile phone
What’s the different between Natural Graphite Sheet & Systhetic Graphite Sheet?
Physical Properties
| Test Item | Unit |
MG-GT300 Test Value |
MG-GT300B Test Value |
MG-GT300B01P Test Value |
| Color | - | Black | Black | Black |
| Material | - | Natural graphite |
Graphite sheet + Adhesive |
Adhesive + graphite sheet + PET film |
| Thickness | mm | 0.13/0.25/0.5 | 0.16/0.28/0.53 | 0.19/0.31/0.56 |
| Continuous use Temp | ℃ | -40~+400 | -40~+400 | -40~+400 |
| Tensile Strength | 4900kpa | 715PS | 715PS | 715PS |
| Hardness | Shore A | 80 | 80 | 80 |
| Flame Rating | - | V-0 | V-0 | V-0 |
|
Thermal Conductivity (vertical direction) |
W/m·K | 20 | 15 | 13 |
|
Thermal Conductivity (horizontal direction) |
W/m·K | 300 | 300 | 300 |
| Standard size: roll size :1000mm*100M, Customized sheet, die-cut form available | ||||

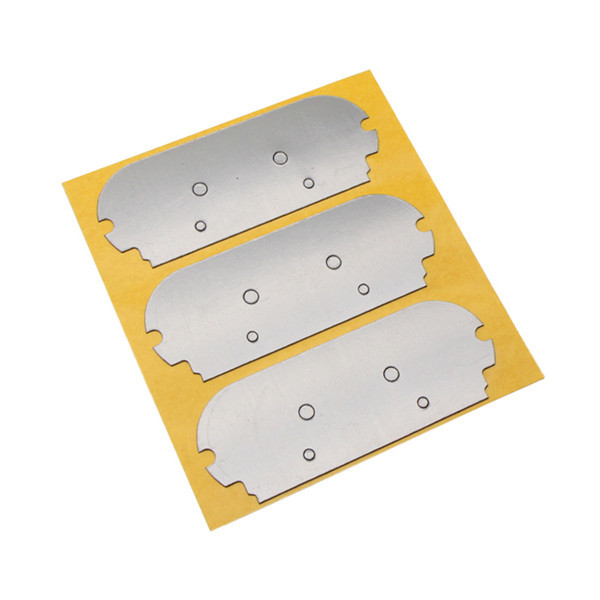

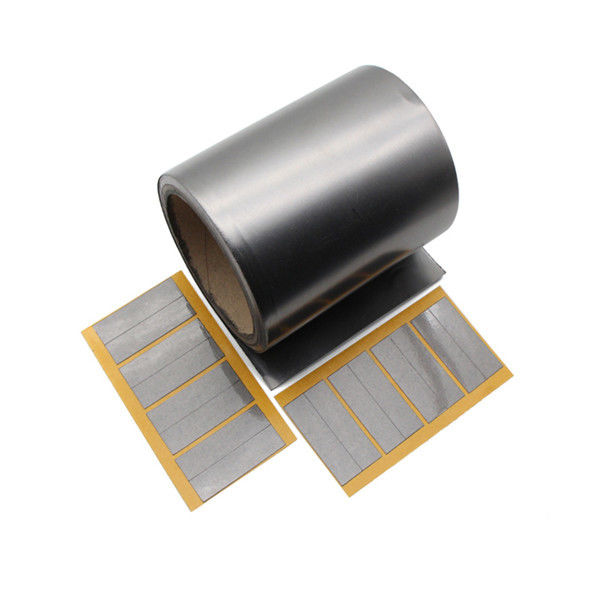

Product Pictures
| Our services |
| 1. 8 years TIMs experiences |
| 2. Professional R&D team |
| 3. One-stop service for thermal conductive material |
| 4. Support customized orders,including size,shape,color, and thermal conductivity or can be coated one side or two sides adhesive or fiberglass according to your demands |
| 5. Free sample provided |
| 6. Manufacturer offers best price |
| 7. Good quality and fast delivery |
| 8. Professional after-sale service |
| 9. Quality system to obtain ISO9001 certification,products meet ROHS,REACH and UL safety standard certification standards |
| 10. Prompt response within 24 hours |
FAQ
Q: What is the size of the product you can supply?
A: Thickness: 0.06mm/ 0.075mm/0.11mm
Jumbo roll size: 500mm X 500m
Log roll size: 500mm X 33m
Slit roll size: We can make the width down to 1mm Custom size is welcomed
Q: May I get samples?
A: Yes, of course.
A4 sheet or width less 10mm roll sample is free, the customer only pays the freight cost.
Q: How about the price?
A : Polyimide tape manufacturer direct sale price
Also, supply this item in various grades to meet customer demands.
Q: What is your MOQ?
A: 100 Square meter or you tell us the size you need, then we calculate the MOQ for you.
Q: What should we pay attention to when used it?
A: Just let know application, then we shall offer solutions.
